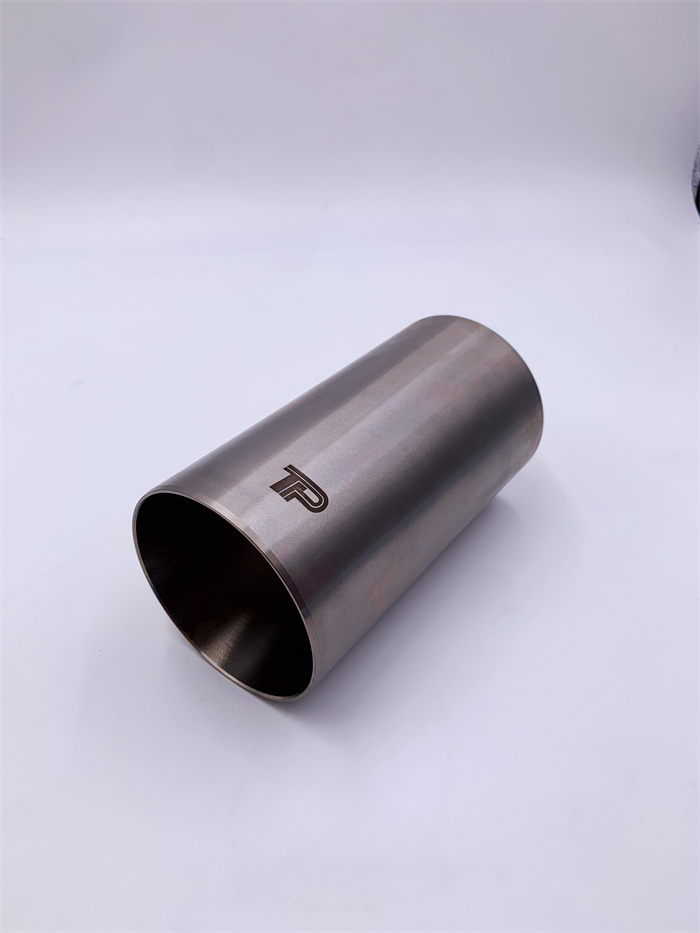

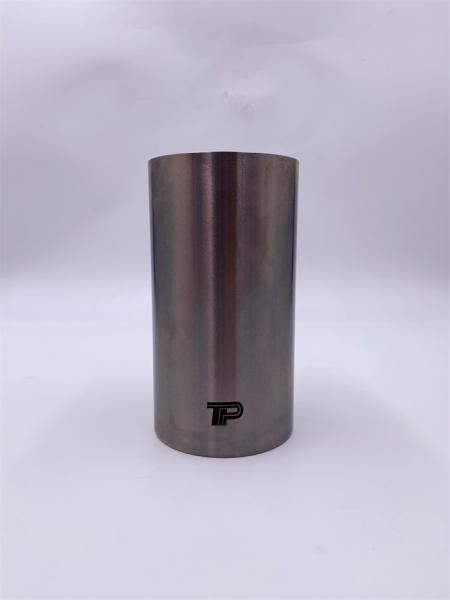

YANMAR 4TNV98 4TNE98 V3300 4D98 Cylinder Liner Sleeves Overhaul Rebuild Kit 129907-01100

YANMAR 4TNV98/4TNE98/V3300/4D98 Cylinder Liner Sleeves overhaul rebuild kit 129907-01100

Principle of supercharged piston common rail system (APRS system) :

The fuel is pressurized into the fuel rail, and then through the high pressure tube into the fuel injectors of each cylinder. Fuel in the injector is divided into two paths: one is into the pressurized piston upper oil chamber, through the throttle hole into the pressurized piston, and then through the injection pressure control valve PCV flow back to the tank; The throttle hole enters the control oil chamber above the control piston. Due to the pressurization of the supercharger piston, the pressure of the part of the fuel isolated by the check valve increases, so that the fuel injection pressure reaches more than 2000bar. Because the high pressure part is located in the injector, the reliability of the system is improved. The injection pressure is controlled by the injection pressure control valve PCV. By changing the control signal, the pressure difference between the upper and lower oil chamber of the pressurized piston can be controlled, thus increasing the control effect. The fuel pressure in the piston small head oil chamber changes the injection oil pressure in the needle valve pressure chamber. The working principle of the fuel injection pressure control valve SCV is the same as that of the high-speed solenoid valve of the common rail system. That is, when the SCV valve is powered off, the fuel injector does not inject oil, because the pressure of the upper part of the control piston generated by the fuel pressure is greater than that of the pressure surface of the needle valve. When the SCV is energized, the oil inlet hole of the oil chamber above the control piston is smaller than the oil outlet hole. Therefore, the oil pressure of the oil chamber above the control piston is reduced, the pressure of the upper piston is rapidly decreased, and the pressure chamber of the needle valve is quickly opened for oil filling. By opening the SCV multiple times, multiple fuel injection can be achieved. If combined with PCV, different shapes of main injection volume curves can be achieved.

COMPANY PROFILE:

OUR ADVANTAGES:

·Original Factory Guarantee

·Higher Efficiency

·Lower Fuel Consumption

·Longer Life

·Genuine Parts

·OEM Replaceable Parts

·4000Hrs Warranty

·Compact Design

·Providing Optimum Dynamicity Of High Stability

·High-Precision Motivation Adjustment

·Easy Replacement In Customer System

FACTORY STRENGTH:

EXHIBITION

PACKAGE&SHIPMENT

FAQ:

1. Are you manufacturer or trading company?

We are the OEM manufacturer, head Office is in HongKong China.

2. What products do you make?

We are engaged in manufacturing engine cylinder liner, piston, piston ring, cylinder liner kits, cylinder head gasket, engine gasket kits and Other core engine parts.

3. What scenario can your product be applied?

Our products are widely used in power fields such as construction machinery, generator set, commercial vehicle, passenger car. agricultural machinery, ship, etc.

4. Which countries and regions are your market extend all over?

Our markets includes North America, Western Europe and the Middle East, Southeast Asia, Africa South America and all over the world,for example:USA,Germany and Australia,UAE and Brazil and so on..

5. What is the standard of package?

We have Japanese TP Brand package, also have wooden case/carton/standard shipping package,Or custom-made packaging.

6. What is the delivery time?

Generally, we will arrange the goods within 24 hours after your payment; If some items are no stock, it will take 30-45 days to produce after received deposit.

7. What kind of payment terms do you have?

L/C, D/A, D/P, T/T, X-Transfer is also acceptable.

8.How can I get a quotation?

A complete quotation based on the details as follows in your inquiry:

a.Excavator brand name;

b.Excavator model number;

c. Engine model;

d.Part number;

e. Pictures;

f.Quantity;

g.Other requirements, such as Packing, Shipping and so on.

4D98 Cylinder Liner Sleeves

4TNE98 Cylinder Liner Sleeves

129907-01100 Cylinder Liner Sleeves
